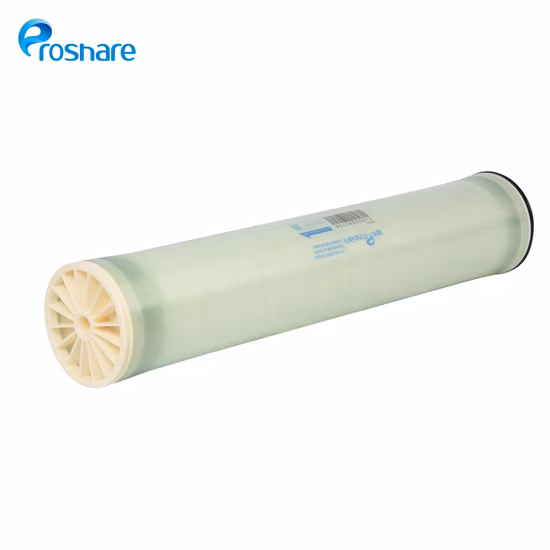

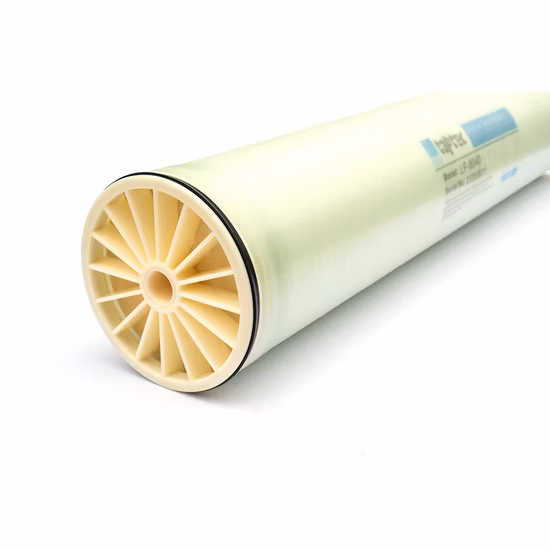

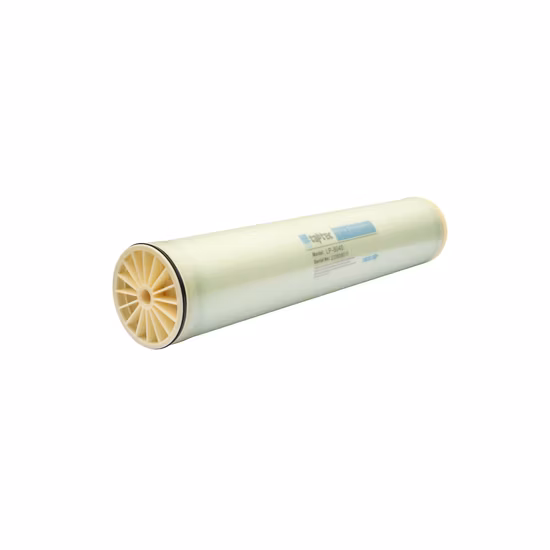

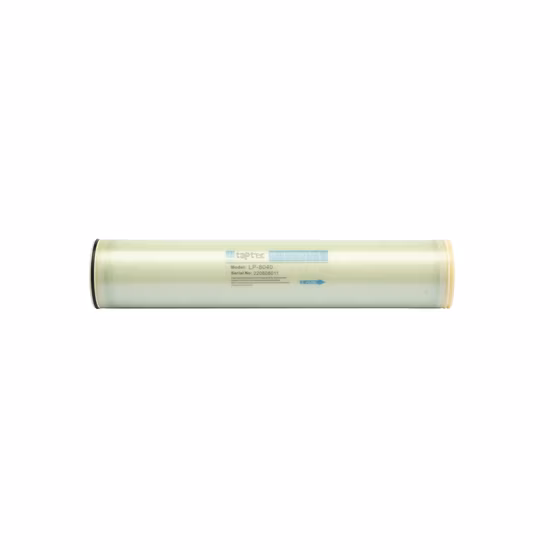

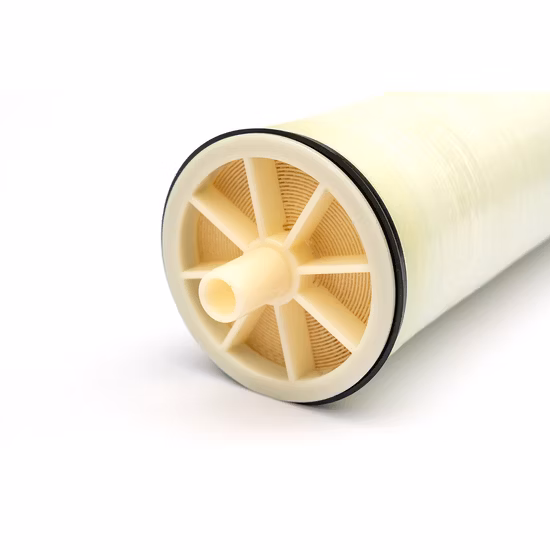

Xlp 8040 Industrial Reverse Osmosis Membrane Element RO Membrane
Description
Basic Info.
| Model NO. | LP-8040 |
| Test Solution | 1500ppm |
| Operate Pressure(Max) | 600psi(4.14 MPa) |
| Certificate | ISO9001, ISO14001 |
| Recovery | 15% |
| Test Temperature | 25ºC±0.5 |
| Test pH | 7.5-8.0 |
| Rejection | 99.2% |
| Gpd | 12700(48) |
| Transport Package | Carton/Pallet |
| Specification | 1 pc/carton |
| Trademark | Wecome |
| Origin | China |
| HS Code | 8421999090 |
| Production Capacity | 10000 PCS Per Month |
Packaging & Delivery
Package Size 108.00cm * 22.00cm * 22.00cm Package Gross Weight 12.500kgProduct Description
Product Description

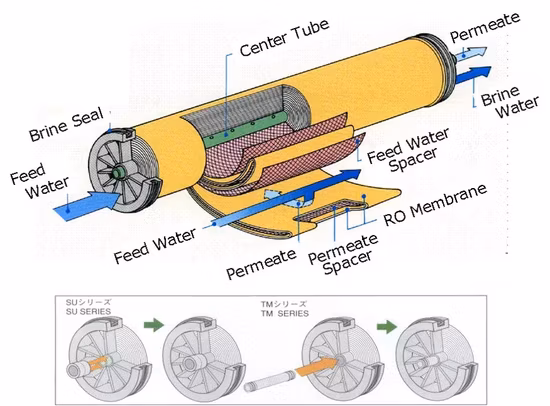

8040 RO membrane element:
Test conditions:
Test feed water ...................................................................................................................1500ppm
Test pressure ......................................................................................................................150psi (1.03Mpa)
Test PH ...............................................................................................................................7.5~8.0
Test temperature ................................................................................................................25±0.5ºC
Recovery ............................................................................................................................15%
Membrane performance:
| Membrane Type | Effective area ft2(m2) | Stable Rejection(%) | GPD(m3/d) |
| LP-8040 | 400(37.2) | 99.2% | 12700(48) |
Membrane size:
| A | B | C |
| 1016mm(40inch) | 203.2mm(8inch) | 38.1mm(1.5inch) |
Operation limit:
Maximum operating pressure ...........................................................................................600psi(4.14Mpa)
Maximum operating temperature ......................................................................................45ºC
Maximum feed silt density index(SDI15) ...........................................................................19.0m3
Maximum chlorine tolerance .............................................................................................0.1ppm
PH range of continues operation .......................................................................................2~11
Suitable application:
LP reverse osmosis membrane elements are widely used in various municipal tape water, groundwater, surface water and other water sources with feed TDS<1500ppm. It also can be applied to the manufacture of various small and medium-sized industrial pure water machines, chemical water and commercial drinking water production.Product Features
1. High rejection, low operation pressure, equipment configuration requirements are low.
2. Moderate water production.
3. Moderate operating pressure.
4. Wide range of applications.
5. Washable.
Established in 2013, Shanghai WECOME Environmental & Technology Co., Ltd is a professional membrane technology and materials supplier with production and sales together. We are specializing in reverse osmosis membrane element solutions, including rolling machines and raw materials. We also have our own factory, which is based in 2011. We are located in International metropolis-Shanghai, known as "Oriental Paris" and "Magic Capital". All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Covering an area of 600 square meters, we now have over 30 employees, an annual sales figure that exceeds USD 10, 000, 000 and are currently exporting of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001, ISO45001 certificates. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Asia, Europe, Southeast Asia etc. Our company history as follows:2013.11 Shanghai WECOME company established.2014.03 Water treatment RO membrane tape products manufacture and market sales start.2015.02 RO membrane automatic rolling machine design finished, and start OEM production.2016.08 RO membrane automatic rolling machine manufacture and market sales start.2017.03 WECOME India branch established, and start running to service local India customers.2018.03 RO membrane permeate carrier product start manufacture and market sales.2019.03 Strategic cooperation with Alibaba, Globe marketing sales start a new page.2021.12 Strategic cooperation with Made-In-China, online sales start a new page again.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relations with new clients around the world in the near future.
Company scale
1 Who we are?
We are specializing in RO membrane solutions, including rolling machines and raw materials, like central tube, spacer, tricot(permeate carrier), sheet, glue etc. We also have our own factory, which is based in 2011.
2 Do your products support customization? Can I put my logo on the product?
Yes, sure. We support customized logo in the product including packing.
3 How long does the delivery 40HQ container usually take?
One 40HQ container we can delivery about 15-20 days after receiving full payment.
4 Can I get a free sample? And how long does the delivery sample usually like?
Yes, sure. We can provide you free sample, you just responsible for shipping cost. We can prepare 3-5 days for sample production.
5 Where are your company? Can I visit your company?
Yes, sure. We are located in Shanghai, China. We also have branch located in Beijing, Shenzhen and India.
6 Why choose Wecome?
Not only we are a material supplier, we are also your reliable technical adviser. We have long time experience in membrane rolling market and have many years experiences of imports and exports.
